Hayward Right Drive Kit — Part # HSXTV109

Key Benefits + TracVac Drive Fitment

• Genuine Hayward replacement right drive kit for the Hayward TracVac suction-side pool cleaner

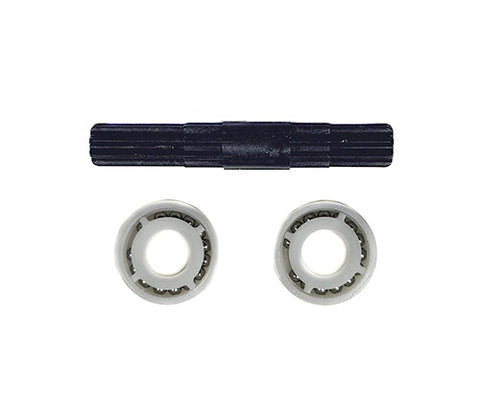

• Includes the short drive shaft and two bearings
• Services the cleaner's right-side drive assembly
• Replaces worn, damaged, or failed right-drive components
• Provides a targeted repair without replacing unrelated TracVac components
• Clearly identified by Hayward part number HSXTV109 for accurate replacement selection

Hayward's TracVac replacement-parts system identifies HSXTV109 specifically as the Right Drive Kit containing the short drive shaft and two bearings.

Quick Product Summary

The Hayward HSXTV109 TracVac Right Drive Kit is a genuine replacement assembly for the Hayward TracVac suction-side automatic pool cleaner. The kit includes the short drive shaft and two bearings used in the cleaner's right-side drive system. It is intended for pool owners and service professionals repairing confirmed wear or damage within that assembly. Because the TracVac uses the separate HSXTV108 Left Drive Kit on the opposite side, verify the affected drive side and match part number HSXTV109 before ordering.

Best For

• Hayward TracVac cleaner repairs
• Right-side drive-system service
• Replacing a worn or damaged short drive shaft
• Replacing associated right-drive bearings
• TracVac rebuilds and preventative service
• Pool professionals ordering by Hayward part number

Why This Matters

• The TracVac uses different components for its left and right drive assemblies
• HSXTV109 supplies the short drive shaft and two associated bearings together
• Correct side identification helps prevent ordering HSXTV108 by mistake
• Worn drive components should be identified before replacement
• Matching the exact manufacturer part number is more reliable than ordering by appearance
• Targeted repairs allow usable surrounding cleaner components to remain in service

Common Signs You Need This / Use This When

• The short drive shaft has visible wear or physical damage
• One or both associated bearings require replacement
• Inspection identifies a problem within the right-side drive assembly
• You are rebuilding the TracVac drivetrain
• Your cleaner's replacement-parts information specifies HSXTV109
• Existing right-drive components no longer operate or engage correctly

Product Specifications

POOL360's current TracVac schematic confirms the part number, right-drive designation, application, and kit contents. The UPC associated with HSXTV109 is 0610377422031.

Compatibility / Fitment Notes

Hayward HSXTV109 is specifically for the Hayward TracVac suction-side pool cleaner. Hayward's TracVac parts system lists HSXTV109 as the Right Drive Kit and HSXTV108 separately as the Left Drive Kit containing the long drive shaft and bearing housing.

Confirm that your cleaner is a Hayward TracVac and that the right-side drive assembly is the area requiring service before ordering. Do not substitute HSXTV109 for HSXTV108 simply because both products are TracVac drive kits.

Installation / Use Notes

Turn off the pool pump and remove the TracVac from operation before servicing the drive system. Access the right-side drive assembly according to the service information for the cleaner and replace the short drive shaft and bearings where required.

While the cleaner is disassembled, inspect the surrounding gears, wheels, tracks, shafts, and bearings for wear or damage. Confirm proper assembly and free movement before returning the TracVac to service.

Buy with Confidence

Benchmark Pool Supply helps customers identify Hayward cleaner replacement parts by manufacturer part number, cleaner platform, and actual repair application. This is especially important with the TracVac because its left and right drive assemblies use different replacement kits.

For HSXTV109, verify that you need the right-side short drive shaft and two-bearing kit before ordering to help avoid purchasing the incorrect TracVac drive assembly.
