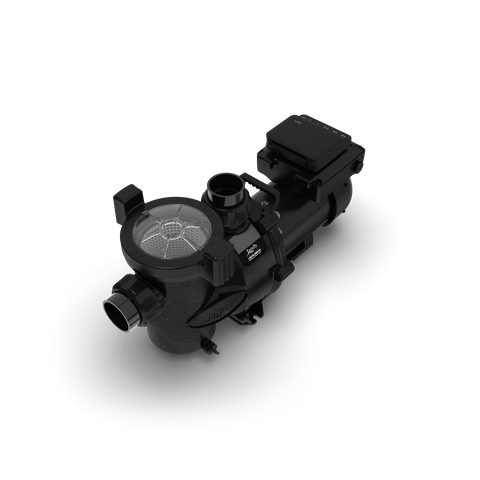

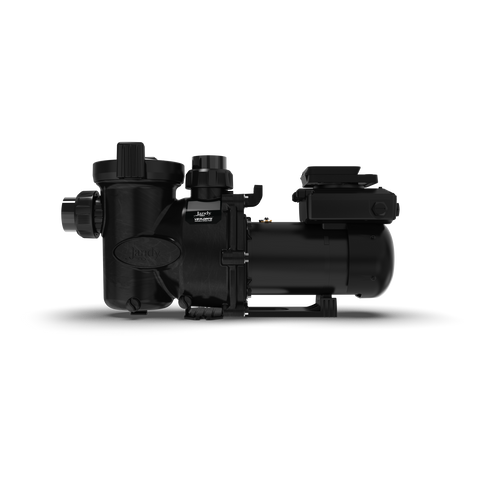

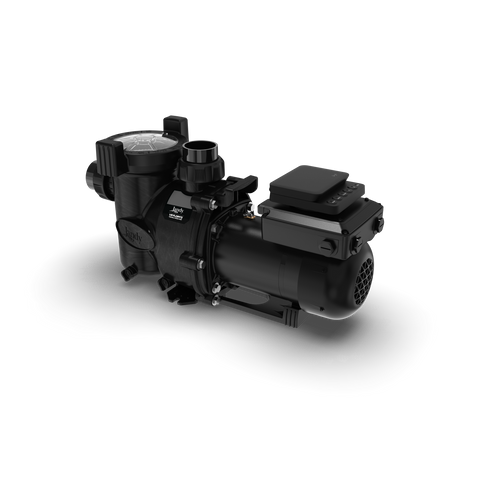

Jandy VS FloPro 1.65 THP Variable-Speed Pool Pump with SpeedSet Controller VSFHP165DVS
Key Benefits +
How to Use +
Specifications +
Buy with Confidence from Benchmark Pool Supply +
Buy with Confidence from Benchmark Pool Supply
- Trusted pool professionals
- 100% Genuine Manufacturer Parts Guaranteed
- Fast Shipping
Full Product Description +
Key Benefits + Pump Replacement Fit
- 1.65 THP variable-speed performance for efficient residential pool circulation.

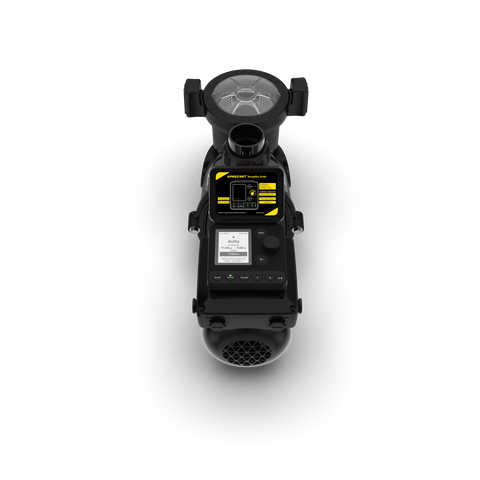

- SpeedSet controller is preinstalled on model VSFHP165DVS for direct pump programming.
- 115V / 230V auto-sensing dual-voltage design supports flexible replacement installations.
- Zero Clearance TEFC motor allows installation close to walls and fences while drawing cooling air from the sides.
- Included adjustable base helps align the pump with many existing equipment-pad plumbing layouts.
- Compatible with Jandy AquaLink automation and iQPUMP01 control.
Quick Product Summary
The Jandy VS FloPro VSFHP165DVS is a 1.65 THP variable-speed pool pump with a preinstalled SpeedSet controller for residential in-ground pool circulation. Its 115V/230V auto-sensing dual-voltage design, compact Zero Clearance TEFC motor, and adjustable base make it a strong replacement option for many existing single-speed pump installations. Confirm the model number, electrical supply, plumbing size, equipment-pad dimensions, and automation requirements before ordering.
Best For
- Residential in-ground pool filtration and circulation.
- Replacing many single-speed pumps up to 1.5 HP.
- Equipment pads where compact motor clearance is important.
- Pool owners who want direct SpeedSet programming or Jandy automation compatibility.
Why This Matters
- Variable-speed operation allows circulation to be matched to the pool system instead of running at one fixed speed.
- Dual-voltage compatibility can simplify replacement planning when the existing electrical supply is 115V or 230V.
- The adjustable base helps reduce plumbing-alignment problems during replacement installations.
- The preinstalled SpeedSet controller provides local speed and schedule control without requiring a separate controller purchase.
- Exact model identification distinguishes the DVS version with SpeedSet from the VSFHP165DV version sold without the controller.
Common Signs You Need This / Use This When
- Your existing single-speed circulation pump is aging, noisy, inefficient, or due for replacement.
- You want programmable variable-speed circulation for routine filtration and higher-flow functions.
- You need a compact replacement pump with adjustable-base flexibility.
- You want the SpeedSet controller already installed on the pump.
- Your installer has confirmed the electrical, plumbing, flow, and equipment-pad requirements.
Product Specifications
| Specification | Details |
|---|---|
| Brand | Jandy |
| Series | VS FloPro |
| Model / SKU | VSFHP165DVS |
| Product Type | In-ground self-priming variable-speed pool filter pump |
| Total Horsepower | 1.65 THP |
| Voltage | 115 VAC / 230 VAC auto-sensing |
| Maximum Watts | 1700 W |
| Maximum Amps | 17.7 A at 115 VAC; 10.5 A at 230 VAC |
| Weighted Energy Factor | 9.1 at 115 VAC; 9.0 at 230 VAC |
| Union Size | 2 in. |
| Recommended Pipe Size | 1-1/2 in. to 2 in. |
| Weight | 39.3 lb |
| Controller | SpeedSet controller preinstalled |
| Motor | Zero Clearance TEFC |
| ENERGY STAR Certified | Yes |
| UPC / GTIN | 052337101745 |
Compatibility / Fitment Notes
The VSFHP165DVS is designed as a flexible replacement pump, but it should not be treated as a universal drop-in replacement for every existing pump. Jandy provides an adjustable base to help fit many existing pool-pad setups. Confirm suction and discharge alignment, 2-inch union connections, recommended pipe size, electrical supply, available clearance, system flow requirements, and automation compatibility before purchase.
Installation / Use Notes
Professional installation is recommended. Electrical wiring, bonding, plumbing, priming, flow verification, and controller setup should follow the current Jandy installation manual and applicable codes. Use the preinstalled SpeedSet controller to program appropriate pump speeds and schedules for the pool system, or integrate the pump with compatible Jandy automation when applicable. Verify leak-free plumbing and proper system operation before regular use.
Buy with Confidence
Benchmark Pool Supply helps pool owners and service professionals match the correct pool equipment to the application. Confirm model VSFHP165DVS, electrical requirements, plumbing size, replacement fitment, and automation needs before installation so you select the correct VS FloPro configuration.
Frequently Asked Questions
Does the VSFHP165DVS include a controller?
Yes. The VSFHP165DVS includes the Jandy SpeedSet variable-speed pump controller preinstalled.
What voltage does the VSFHP165DVS use?
It supports 115V and 230V power with auto-sensing dual-voltage compatibility.
What size plumbing connections does this pump use?
Jandy specifies 2-inch unions and recommends 1-1/2-inch to 2-inch pipe.
Can the VSFHP165DVS work with Jandy automation?
Yes. Jandy states it can be used with AquaLink automation systems and the iQPUMP01 for pump control.
What kind of replacement application is this pump designed for?
Jandy positions the VS FloPro 1.65 HP as a compact variable-speed replacement option for many single-speed pumps up to 1.5 HP, with an adjustable base for flexible equipment-pad fitment.
