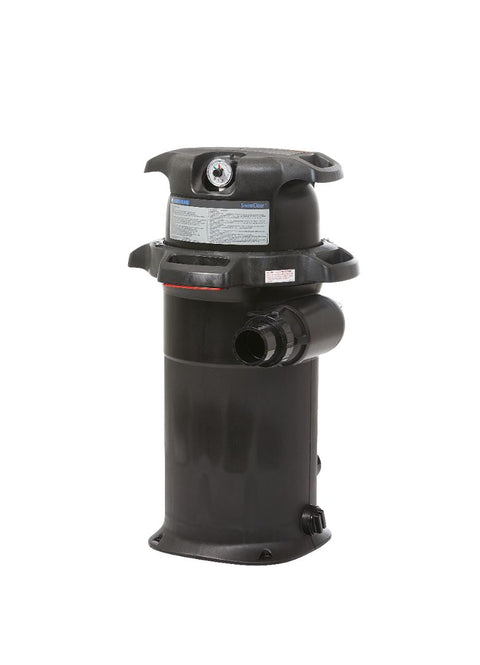

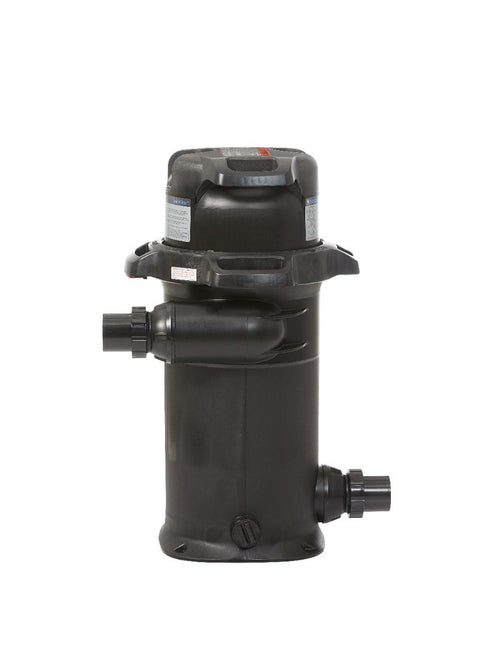

Hayward SwimClear C150S 150 Sq Ft Cartridge Pool Filter | W3C150S
Hayward★ Key Benefits +
- 150 sq. ft. of effective cartridge filtration area.
- Single-element design keeps routine cartridge cleaning and replacement straightforward.
- 120 GPM residential design flow rating from Hayward.
- 2 in. x 2.5 in. union connections support convenient plumbing and service access.
- Designed for low head loss to reduce unnecessary circulation-system restriction.
- No backwashing required; routine maintenance is performed by cleaning the cartridge element.
ⓘ How to Use +
▦ Specifications +
Brand: Hayward
Product Line: SwimClear
Model: C150S
Product Type: Single-Element Cartridge Pool Filter
SKU / MPN: W3C150S
UPC / GTIN: 610377448680
Effective Filtration Area: 150 sq. ft. / 13.94 m²
Residential Design Flow Rate: 120 GPM / 455 LPM
Public Design Flow Rate: 56 GPM / 213 LPM
Maximum Working Pressure: 50 PSI / 3.45 bar
Union Connections: 2 in. x 2.5 in.
Dimensions: 33.75 in. H x 18.25 in. W
Head Removal Clearance: 15 in.
Filter Tank: High-strength, injection-molded, glass-reinforced copolymer
Filter Element: Reinforced polyester
Replacement Cartridge Element: CX150XRE
🏅 Buy with Confidence from Benchmark Pool Supply +
Benchmark Pool Supply helps pool owners identify complete equipment and replacement parts using model numbers, plumbing requirements, and real pool-equipment knowledge. If you are replacing an existing filter, use the model label and equipment-pad details to confirm the correct match before ordering.
MultiCyclone 16 is an optional upstream pre-filter, not replacement media for C150S. Have an installer verify actual flow within the pre-filter's 13–132 GPM range and the C150S rating. Applied Biochemists Filter Blaster is a separate cartridge-cleaning option; use only according to its label and Hayward's element-care instructions, then rinse as directed before reassembly.
Buy with Confidence from Benchmark Pool Supply
- Trusted pool professionals
- 100% Genuine Manufacturer Parts Guaranteed
- Shipping options for eligible products
Related Products & Replacement Parts
Shop related products, replacement parts, and compatible pool equipment that may fit, replace, or support this item.
+ Full Product Description +
Key Benefits + Filter Performance
- Provides 150 sq. ft. of effective cartridge filtration area for pool water filtration.

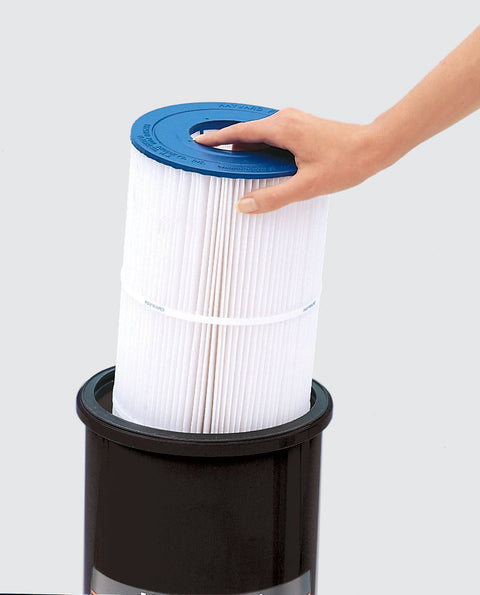

- Uses a single reinforced-polyester cartridge element for straightforward cleaning and replacement.
- Hayward rates the C150S at a 120 GPM residential design flow rate.
- 2" x 2½" union connections help simplify plumbing connections and future service access.
- Designed for low head loss to help reduce unnecessary restriction in the circulation system.
- No backwashing is required; routine maintenance is performed by cleaning the cartridge element.
Quick Product Summary
The Hayward SwimClear C150S W3C150S is a 150 sq. ft. single-element cartridge pool filter designed to provide efficient pool water filtration with straightforward cartridge maintenance. Hayward rates the C150S at 120 GPM for residential applications and equips it with 2" x 2½" union connections. Before ordering, verify your existing filter model, plumbing layout, required flow, equipment-pad space, and overhead service clearance.
Best For
Pool owners replacing an existing Hayward C150S or choosing a single-element cartridge filter for a properly sized circulation system. It is especially useful where simple cartridge access, no backwashing, and compact equipment-pad dimensions are priorities.
Why This Matters
- Correct filter sizing helps the circulation system move water without unnecessary restriction.
- A 150 sq. ft. single cartridge provides a large filtering surface while keeping routine cartridge service simple.
- Confirming plumbing connections and service clearance before purchase helps prevent installation problems.
- Matching the filter model also makes future replacement-cartridge selection easier.
Common Signs You Need This / Use This When
- You are replacing an existing Hayward C150S or W3C150S filter.
- Your current filter tank or internal components require replacement and a complete filter is the better repair path.
- You want a cartridge filtration system that does not require backwashing.
- Your installer has confirmed that 150 sq. ft. of filtration area and the C150S flow rating are appropriate for the system.
Product Specifications
| Specification | Details |
|---|---|
| Brand | Hayward |
| Product Line | SwimClear |
| Model | C150S |
| Product Type | Single-Element Cartridge Pool Filter |
| SKU / MPN | W3C150S |
| UPC / GTIN | 610377448680 |
| Effective Filtration Area | 150 sq. ft. / 13.94 m² |
| Residential Design Flow Rate | 120 GPM / 455 LPM |
| Public Design Flow Rate | 56 GPM / 213 LPM |
| Maximum Working Pressure | 50 PSI / 3.45 bar |
| Union Connections | 2" x 2½" |
| Dimensions | 33¾" H x 18¼" W |
| Head Removal Clearance | 15" |
| Filter Tank | High-strength, injection-molded, glass-reinforced copolymer |
| Filter Element | Reinforced polyester |
| Replacement Cartridge Element | CX150XRE |
Compatibility / Fitment Notes
W3C150S identifies the Hayward SwimClear C150S 150 sq. ft. filter. When replacing an existing filter, confirm the model number on the filter label rather than selecting by filtration area alone. Verify the 2" x 2½" union connection arrangement, available equipment-pad space, system flow requirements, and at least 15" of overhead clearance for filter-head and cartridge removal.
Hayward lists CX150XRE as the replacement cartridge element for the C150S. If you are purchasing a replacement element rather than the complete filter, match the filter model before ordering.
Installation / Use Notes
Have a qualified pool professional verify filter sizing, plumbing configuration, equipment-pad clearance, and circulation-system flow before installation. Install and operate the filter according to Hayward's instructions. Never open or service a pool filter while the system is pressurized; follow the manufacturer's shutdown and pressure-relief procedures before maintenance.
