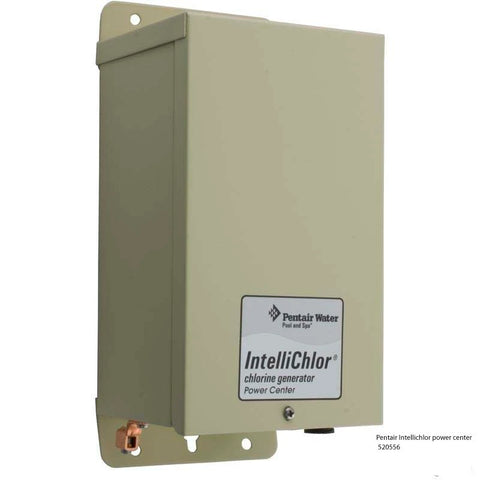

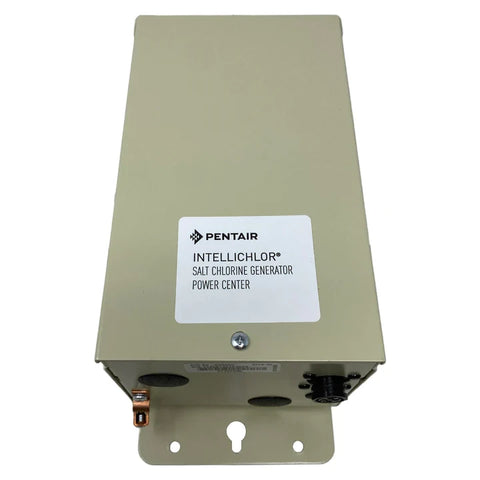

Pentair IntelliChlor PC100 Power Center Kit | EC-520556

The Pentair IntelliChlor PC100 Power Center Kit EC-520556 supplies the low-voltage DC power and communication connection required by compatible IntelliChlor salt chlorine generator cells. It is designed for use with Pentair IntelliChlor IC20, IC40 and IC60 cells and can operate as part of a stand-alone salt chlorination system or interface with compatible Pentair automation.

This listing is for the power center only. An IntelliChlor electrolytic cell is required for a complete operating salt chlorine generation system and is not included. Confirm the cell model, electrical supply and installation layout before ordering.

Reliable Power and Communication for IntelliChlor Cells

The PC100 Power Center converts incoming AC power into the low-voltage DC power used by the IntelliChlor cell. Pentair specifies an output of 22–39 VDC at up to 7.3 amps. The enclosure contains the transformer, replaceable 10-amp fuse, cell connector and an internal green power indicator.

The power center also provides the communication path between the IntelliChlor cell and compatible Pentair automation systems. It can connect with IntelliTouch, EasyTouch or SunTouch controls, allowing the salt chlorination equipment to function as part of the pool's control system when installed according to Pentair's instructions.

Compatible IntelliChlor Models

• Pentair IntelliChlor IC20 salt chlorine generator cell
• Pentair IntelliChlor IC40 salt chlorine generator cell
• Pentair IntelliChlor IC60 salt chlorine generator cell

Compatibility is based on the Pentair IntelliChlor Power Center installation guide. This unit is not a replacement cell and does not generate chlorine by itself.

115/230-Volt Installation Flexibility

The power center supports 90–130 VAC or 220–240 VAC input at 50/60 Hz. Pentair lists 220 watts of input power, with a rated current of 2 amps on the lower-voltage input range or 1 amp on the higher-voltage range. The transformer wiring must be configured for the actual supply voltage during installation.

For safe operation, Pentair requires the power center to be interconnected with the pool circulation pump's electrical source. It must receive power only when the circulation pump is running so the IntelliChlor cell cannot be energized without water flow. Electrical wiring, grounding and bonding should be completed by a qualified professional in accordance with the current Pentair installation guide and applicable codes.

Equipment-Pad Installation

The weather-resistant enclosure mounts vertically to a flat wall or post near the pool equipment. The installation location must leave adequate service clearance and remain within reach of the cell's 15-foot DC power cord. The supplied cell connector provides a direct connection at the bottom of the power center.

Before installation, verify the intended cell, available line voltage, automation configuration and mounting location. Disconnect all electrical power before installation or service. The completed installation must follow Pentair's current placement, grounding, bonding and wiring requirements.

What's Included

• One Pentair IntelliChlor PC100 Power Center enclosure
• Transformer and internal circuit board
• 10-amp replaceable fuse
• IntelliChlor cell connection
• Installation documentation

Not included: IntelliChlor IC20, IC40 or IC60 cell, pool automation system, timer, field wiring or installation labor.

Product Specifications

• Brand: Pentair
• Product: IntelliChlor PC100 Power Center Kit
• Manufacturer SKU: EC-520556
• Compatible cells: IntelliChlor IC20, IC40 and IC60
• Input: 90–130 VAC or 220–240 VAC, 50/60 Hz
• Input power: 220 watts
• Rated input current: 2 amps at 90–130 VAC or 1 amp at 220–240 VAC
• Output: 22–39 VDC at 7.3 amps maximum
• Internal fuse: 10 amp, replaceable
• Automation compatibility: Pentair IntelliTouch, EasyTouch and SunTouch
• Installation: Vertical wall or post mounting by a qualified professional
