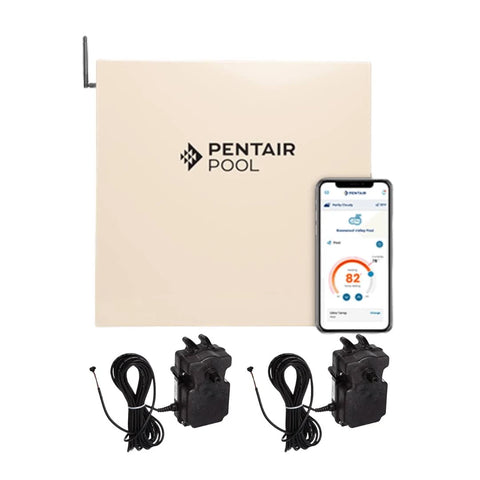

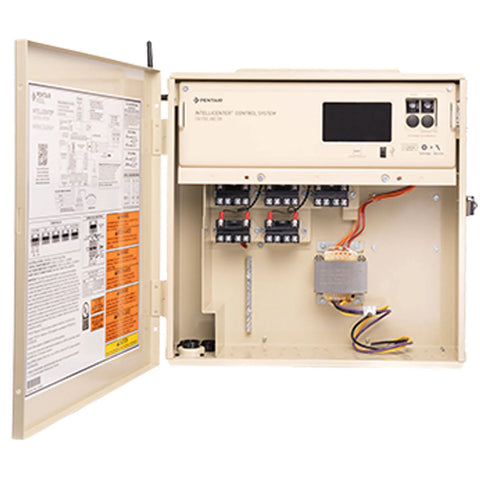

Pentair 523910 IntelliCenter Lite i5PS Pool & Spa Automation System

Key Benefits + Compact IntelliCenter Pool & Spa Control

• Current Pentair IntelliCenter Lite i5PS bundle for pool and spa automation.
• Includes five relays for controlling compatible pool and spa equipment circuits.
• Includes two Compool® valve actuators for pool/spa valve control.
• Wi-Fi bridge/antenna is included for wireless monitoring and control.
• Compact breakerless Power Center is designed for installations where a separate breaker panel is already in place.
• Intuitive color touchscreen provides local system control at the equipment pad.

Quick Product Summary

The Pentair 523910 IntelliCenter Lite i5PS is a compact five-relay pool and spa automation system built around the IntelliCenter platform. It is designed for installations that need modern automation, app-based monitoring, a color touchscreen, and pool/spa valve control without the larger load center and integrated breaker panel used on full-size IntelliCenter systems.

Pentair’s current 2025–2026 product catalog identifies 523910 as the IntelliCenter Lite i5PS bundle with a Power Center, i5PS personality kit, five relays, two Compool valve actuators, and a Wi-Fi bridge/antenna. The Power Center does not include a breaker panel, making this system especially useful when the equipment pad already has a suitable electrical panel or when a compact retrofit-friendly automation enclosure is preferred.

The included Wi-Fi connection allows homeowners to monitor and control the system through Pentair’s connected pool-control platform. Pentair also offers the optional 523557 900 MHz High-Powered Wireless Ethernet Link Kit when greater wireless range or a more robust connection is needed. That optional high-powered wireless kit is not the same thing as the standard Wi-Fi bridge included with 523910.

Best For

Pool and spa combinations that need up to five relay-controlled circuits, automated pool/spa valve switching, connected control, and IntelliCenter functionality in a smaller breakerless enclosure.

Why This Matters

• The i5PS personality is specifically configured for pool and spa applications rather than pool-only control.
• Five included relays provide switching capability for compatible pumps, lights, water features, and other equipment circuits within the system design.
• Two included Compool valve actuators support automated switching between pool and spa plumbing positions.
• The included Wi-Fi bridge reduces the need to purchase a separate standard wireless connection accessory.
• The breakerless Power Center can simplify retrofits where the existing electrical breaker panel will remain in service.
• The IntelliCenter platform provides local touchscreen control plus connected monitoring and control.

Common Reasons to Choose This System

• Replacing or upgrading an older pool/spa automation system.
• Adding connected control to a pool and spa combination.
• Automating pool/spa valve switching with included actuators.
• Using an existing external breaker panel instead of installing a full load center.
• Moving to the IntelliCenter platform while keeping the installation footprint more compact.

Product Specifications

Compatibility / Installation Notes

Part 523910 is the pool-and-spa i5PS version of IntelliCenter Lite. Pentair separately offers 523911 as the i5P pool-only version, so the two systems should not be treated as interchangeable when pool/spa valve control is required. Pentair also lists earlier IntelliCenter Lite and EasyTouch Lite configurations as legacy systems replaced by newer IntelliCenter Lite options, but existing wiring, equipment, valve layout, communication requirements, and electrical-panel configuration should be evaluated before using 523910 as a retrofit.

Because the Power Center does not contain a breaker panel, the installation requires a suitable external electrical panel. Relay loading, breaker sizing, bonding, grounding, low-voltage wiring, equipment compatibility, and installation should follow Pentair documentation and applicable electrical codes. Confirm the complete equipment list before purchase, especially when integrating pumps, heaters, lighting, sanitization, or existing third-party equipment.

Installation / Use Notes

Installation should be completed by a qualified pool professional or electrician familiar with pool automation. After the Power Center, personality kit, relays, valve actuators, and connected equipment are installed and commissioned, configure the pool/spa bodies, circuits, schedules, valve positions, and connected devices through the IntelliCenter interface. Connect the included Wi-Fi bridge/antenna to the homeowner’s network for supported remote monitoring and control. If standard Wi-Fi range is inadequate, Pentair offers the optional 523557 900 MHz High-Powered Wireless Ethernet Link Kit.

Buy with Confidence

Benchmark Pool Supply helps customers identify automation systems by exact Pentair part number, body-of-water configuration, relay count, valve requirements, wireless setup, and electrical-panel layout. With IntelliCenter Lite, confirming whether the project requires the i5PS pool/spa version or the i5P pool-only version is an important step before ordering.

Frequently Asked Questions

What is included with Pentair 523910?

Pentair 523910 includes the IntelliCenter Lite Power Center with i5PS personality kit, five relays, two Compool valve actuators, and the standard Wi-Fi bridge/antenna. A breaker panel is not included.

Is Pentair 523910 for a pool only or a pool and spa?

523910 is the i5PS pool-and-spa version. Pentair 523911 is the related i5P pool-only IntelliCenter Lite system.

Does 523910 include Wi-Fi?

Yes. Pentair’s current IntelliCenter Lite literature lists a Wi-Fi bridge/antenna as included with 523910 for wireless monitoring and control.

Does 523910 include the 900 MHz High-Powered Wireless Link Kit?

No. The optional 523557 900 MHz High-Powered Wireless Ethernet Link Kit is sold separately for installations that need increased wireless range or a more robust connection.

Does the IntelliCenter Lite 523910 include a breaker panel?

No. The IntelliCenter Lite Power Center is breakerless and is intended for installations where a suitable separate breaker panel is already available.
